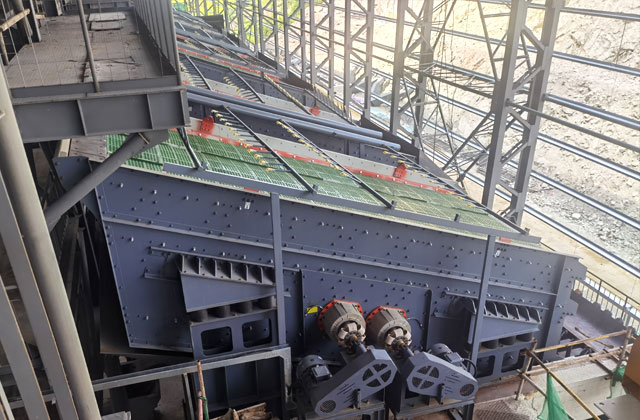

S5X Vibrating Screen Introduction

S5X Vibrating Screen is of high vibration intensity. Under the same specifications, it has larger processing capacity and higher screening efficiency compared to traditional screens. It is particularly applicable to heavy type, middle type and fine screening operations, and it is the ideal screening equipment for primary crushing, secondary crushing and finished materials.

Input Size: 0-200mm
Capacity: 45-900TPH
Material: Granite, marble, basalt, limestone, quartz, pebble, copper ore, iron ore and so on

Working Principle of S5X Vibrating Screen

S5X Vibrating Screen adopts rubber springs as elastic supporting components and the SV super vibrator as the source of vibration. The excitation force, generated under the rotation of the eccentric block, makes the screen box do reciprocating motions. When the vibrating screen is running, materials continuously bounce and roll over on the inclined screen surface. By repeatedly comparing with the screen holes, materials smaller than the screen size would be sieved out while larger ones retain on the screen surface. This is the whole screening process.

Specifications – Technical Data

Model Size W×L
(mm)		 Number
of decks		 Incline
(°)		 Mesh Size
(mm)		 Max input size
(mm)		 Oper.Speed
(RPM)		 Double amplitude
(mm)		 Capacity
(t/h)		 Power
(kW)
S5X1545-2 1500×4500 2 18(18-25) 2-70 200 800-900 7-12 45-380 11
S5X1545-3 1500×4500 3 18(18-25) 2-70 200 800-900 7-12 45-380 15
S5X1845-2 1800×4500 2 18(18-25) 2-70 200 800-900 7-12 60-450 15
S5X1845-3 1800×4500 3 18(18-25) 2-70 200 800-900 7-12 60-450 22
S5X1860-2 1800×6000 2 18(18-25) 2-70 200 800-900 7-10 75-600 15
S5X1860-3 1800×6000 3 18(18-25) 2-70 200 800-900 7-12 75-600 30
S5X1860-4 1800×6000 4 18(18-25) 2-70 200 800-900 7-12 75-600 37
S5X2160-2 2100×6000 2 18(18-25) 2-70 200 800-900 7-12 85-700 22
S5X2160-3 2100×6000 3 18(18-25) 2-70 200 800-900 7-12 85-700 30
S5X2160-4 2100×6000 4 18(18-25) 2-70 200 800-900 7-11 85-700 37
S5X2460-2 2400×6000 2 18(18-25) 2-70 200 800-900 7-12 100-800 22
S5X2460-3 2400×6000 3 18(18-25) 2-70 200 800-900 7-11 100-800 30
S5X2460-4 2400×6000 4 18(18-25) 2-70 200 800-900 7-10 100-800 37
S5X2760-2 2700×6000 2 18(18-25) 2-70 200 800-900 7-12 120-900 30
S5X2760-3 2700×6000 3 18(18-25) 2-70 200 800-900 7-11 120-900 37
S5X3072-2 3000×7200 2 20(20-25) 2-70 200 800-900 7-11 150-1200 37
S5X3075-2T 3000×7200 2 20(20-25) 2-150 300 800-900 7-12 180-1800 22×2
S5X3075-3T 3000×7200 3 20(20-25) 2-150 300 800-900 7-12 180-1800 30×2
S5X3680-2T 3600×7500 2 21(20-25) 2-150 300 800-900 7-12 225-2250 30×2
S5X3680-3T 3600×7500 3 20(20-25) 2-150 300 800-900 7-12 225-2250 37×2

Note:
1, No standard vibrating screen with only one decks.
2, The processing amount listed in the table is based on the dry bulk density graded limestone 1.6t / m3 for a given amount of processing listed as a guide.
