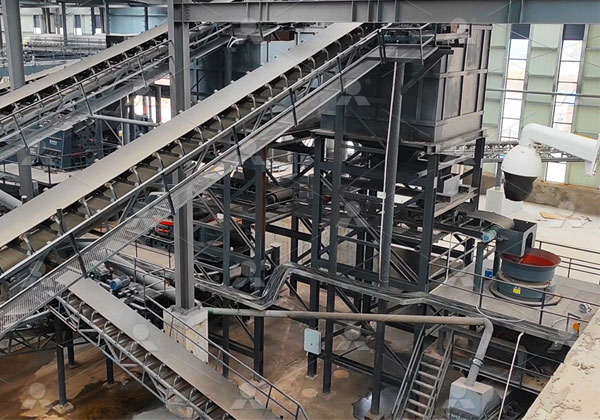

A Zinc Ore Crushing Production Line is designed to process zinc ores, turning them into a suitable form for further processing in smelting plants. Zinc is an important metal in the global market, used in a variety of applications such as galvanizing steel, batteries, and manufacturing alloys. The crushing production line plays a vital role in transforming the raw zinc ore into a form that can be efficiently treated in subsequent stages, like flotation and smelting. Here’s an overview of the key components and stages involved in a typical zinc ore crushing production line.
Primary Crushing
The first step in a zinc ore crushing production line is primary crushing. This stage is designed to reduce the size of the raw ore to a manageable level, typically 10 to 15 cm, depending on the nature of the ore. For primary crushing, jaw crushers are often used. These crushers are designed to handle large rocks and can break down ore with high efficiency. The jaw crusher’s robust construction and high crushing ratio make it ideal for the tough material encountered in zinc ore processing.
Once the ore is fed into the jaw crusher, it is broken into smaller pieces, which then pass to the secondary crushing stage.
Secondary Crushing
After primary crushing, the ore typically passes through a cone crusher or impact crusher for secondary crushing. The cone crusher is particularly effective for achieving a finer product with a controlled size. The secondary crushing process further reduces the material size to around 0.5 to 1 cm. The use of cone crushers ensures that the material is of a uniform size and ready for the next stage of processing.
Screening and Sizing
At this stage, a vibrating screen is used to separate the crushed ore based on size. The larger particles, which do not meet the required size, are sent back for further crushing. The correctly sized particles are sent to the next stage, which is usually grinding or flotation. Vibrating screens can be adjusted to separate the material into different fractions, ensuring that the correct size distribution is achieved for the processing plant.
Flotation (Post-Crushing Stage)
After the crushing and grinding stages, the ore is subjected to a flotation process, which is used to concentrate zinc ore. This is not technically part of the crushing line but is an essential subsequent process. During flotation, chemicals are added to the ground ore, and air is bubbled through the slurry, which separates the zinc mineral from waste rock. The resulting concentrate is then sent for smelting to extract pure zinc metal.
Key Equipment in Zinc Ore Crushing Production Line:
- Jaw Crusher: For primary crushing of zinc ore.
- Cone Crusher: For secondary crushing and fine material reduction.
- Impact Crusher: Used for specific types of ore with high hardness or abrasiveness.
- Vibrating Screen: For sorting the crushed ore based on particle size.
- Flotation Cells: Used in the subsequent processing of the ore.
A zinc ore crushing production line is a multi-stage process designed to reduce raw ore to a fine material suitable for further processing. From primary and secondary crushing to screening and grinding, the goal is to produce an optimal particle size that facilitates the recovery of zinc during flotation. Efficient design, choice of crushers, and proper handling of waste materials are crucial for maximizing efficiency and minimizing environmental impact in zinc ore processing.
